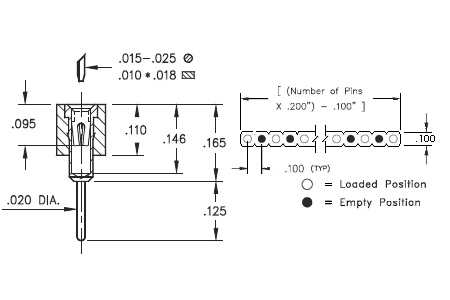

310 Interconnect Machined Pin Socket
Overview
Description:
Standard Solder Tail Socket
Accepts .015"-.025" (0,381-0,635mm) dia leads
Rows:
Single Row
.200" (5,080mm) Pitch
Mounting Type:
Through Hole Solder Mount
Packaging Options:
Packaged in Box or Tube
Product Family:
PCB Connector
Mates With:
811-22-XXX-XX-XXXXXX
812-22-XXX-XX-XXXXXX
815-22-XXX-XX-XXXXXX
816-22-XXX-XX-XXXXXX
821-22-XXX-XX-XXXXXX
825-22-XXX-XX-XXXXXX
829-22-XXX-XX-XXXXXX
310 Interconnect Machined Pin Socket
Overview
Description:
Standard Solder Tail Socket
Accepts .015"-.025" (0,381-0,635mm) dia leads
Rows:
Single Row
.200" (5,080mm) Pitch
Mounting Type:
Through Hole Solder Mount
Packaging Options:
Packaged in Box or Tube
Product Family:
PCB Connector
Mates With:
811-22-XXX-XX-XXXXXX
812-22-XXX-XX-XXXXXX
815-22-XXX-XX-XXXXXX
816-22-XXX-XX-XXXXXX
821-22-XXX-XX-XXXXXX
825-22-XXX-XX-XXXXXX
829-22-XXX-XX-XXXXXX
Products
Narrow Results by:
| Part No. | Priority | In Stock | In Stock Sort | Plating Code | RoHS | No. Pins | Collapsed Product Detail |
|---|
