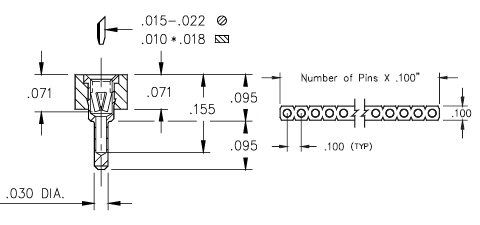

315 Interconnect Machined Pin Socket
Overview
Description:
Low Profile Solder Tail Socket
Accepts .015"-.022" (0,381-0,559mm) dia leads
Rows:
Single Row
.100" (2,540mm) Pitch
Mounting Type:
Through Hole Solder Mount
Packaging Options:
Packaged in Box or Tube
Product Family:
PCB Connector
Mates With:
335-XX-XXX-00-160000
364-XX-XXX-00-580000
380-XX-XXX-10-003000
342-XX-XXX-XX-XXXXXX
350-XX-XXX-XX-XXXXXX
351-XX-XXX-XX-XXXXXX
315 Interconnect Machined Pin Socket
Overview
Description:
Low Profile Solder Tail Socket
Accepts .015"-.022" (0,381-0,559mm) dia leads
Rows:
Single Row
.100" (2,540mm) Pitch
Mounting Type:
Through Hole Solder Mount
Packaging Options:
Packaged in Box or Tube
Product Family:
PCB Connector
Mates With:
335-XX-XXX-00-160000
364-XX-XXX-00-580000
380-XX-XXX-10-003000
342-XX-XXX-XX-XXXXXX
350-XX-XXX-XX-XXXXXX
351-XX-XXX-XX-XXXXXX
Products
Narrow Results by:
| Part No. | Priority | In Stock | In Stock Sort | Plating Code | RoHS | No. Pins | Collapsed Product Detail |
|---|
