423 Interconnect Machined Pin Socket
Overview
Description:

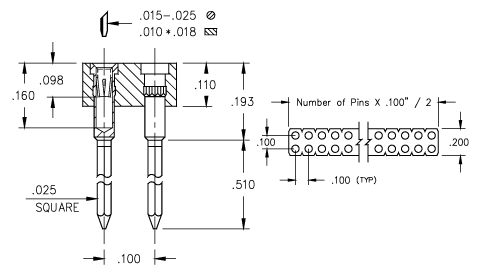

Straight Wrapost Tail Socket
Accepts .015"-.025" (0,381-0,635mm) dia leads
Rows:
Double Row
.100" (2,540mm) Pitch
Packaging Options:
Packaged in Box or Tube
Product Family:
PCB Connector
Mates With:
435-XX-XXX-00-160000
453-XX-XXX-00-001000
464-XX-XXX-00-580000
442-XX-XXX-XX-XXXXXX
450-XX-XXX-XX-XXXXXX
451-XX-XXX-XX-XXXXXX
423 Interconnect Machined Pin Socket
Overview
Description:
Straight Wrapost Tail Socket
Accepts .015"-.025" (0,381-0,635mm) dia leads
Rows:
Double Row
.100" (2,540mm) Pitch
Packaging Options:
Packaged in Box or Tube
Product Family:
PCB Connector
Mates With:
435-XX-XXX-00-160000
453-XX-XXX-00-001000
464-XX-XXX-00-580000
442-XX-XXX-XX-XXXXXX
450-XX-XXX-XX-XXXXXX
451-XX-XXX-XX-XXXXXX
Products
Narrow Results by:
| Part No. | Priority | In Stock | In Stock Sort | Plating Code | RoHS | No. Pins | Collapsed Product Detail |
|---|
