446 Interconnect Machined Pin Socket

446 Interconnect Machined Pin Socket

Overview

Description:

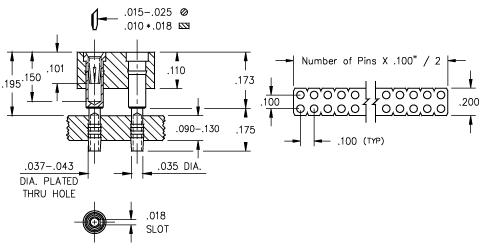

Compliant Tail Press Fit Socket
Accepts .015"-.025" (0,381-0,635mm) dia leads
Rows:
Double Row
.100" (2,540mm) Pitch
Mounting Type:
Press-Fit Into a Plated Through Hole
Packaging Options:
Packaged in Box or Tube

Product Family:

PCB Connector

Mates With:

435-XX-XXX-00-160000
453-XX-XXX-00-001000
464-XX-XXX-00-580000
442-XX-XXX-XX-XXXXXX
450-XX-XXX-XX-XXXXXX
451-XX-XXX-XX-XXXXXX

446 Interconnect Machined Pin Socket

Overview

Description:

Product Family:

PCB Connector

Mates With:

435-XX-XXX-00-160000
453-XX-XXX-00-001000
464-XX-XXX-00-580000
442-XX-XXX-XX-XXXXXX
450-XX-XXX-XX-XXXXXX
451-XX-XXX-XX-XXXXXX

Products

filter

Narrow Results by:

Stock:

No. Pins:

RoHS:

Shell Plating:

1-10 of 155 products

Show entries

Search:

Part No.	In Stock	Plating Code	RoHS	No. Pins	Collapsed Product Detail
446---41-013000	Not in Stock *	13: - 10 μ" Gold over 100 μ" Nickel Inner Contact Plating: 30 μ" Gold over 50 μ" Nickel	Yes	4	Loose Pin Information Loose Pin Used = 4613 Material = Brass Alloy Contact 30 = Standard 4 Finger Contact Material = Beryllium Copper Pin Diameter Range = .015"-.025" (0,381-0,635mm) Insulator Information High Temp Thermoplastic Packaging Packaged in Box or Tube Lifecycle Active Request Note * Contact Distributor for Price and Delivery Quote Sample Datasheet PDF	Mill-Max products labeled with the RoHS symbol are compliant with all three ROHS Directives. All of our products previously described as RoHS (2002/95/EC) and RoHS-2 (2011/65/EC) are also compliant with RoHS-3 (2015/863/EU).
446---41-013000	Not in Stock *	13: - 10 μ" Gold over 100 μ" Nickel Inner Contact Plating: 30 μ" Gold over 50 μ" Nickel	Yes	6	Loose Pin Information Loose Pin Used = 4613 Material = Brass Alloy Contact 30 = Standard 4 Finger Contact Material = Beryllium Copper Pin Diameter Range = .015"-.025" (0,381-0,635mm) Insulator Information High Temp Thermoplastic Packaging Packaged in Box or Tube Lifecycle Active Request Note * Contact Distributor for Price and Delivery Quote Sample Datasheet PDF	Mill-Max products labeled with the RoHS symbol are compliant with all three ROHS Directives. All of our products previously described as RoHS (2002/95/EC) and RoHS-2 (2011/65/EC) are also compliant with RoHS-3 (2015/863/EU).
446---41-013000	Not in Stock *	43: - 200 μ" Tin (matte finish) over 100 μ" Nickel Inner Contact Plating: 30 μ" Gold over 50 μ" Nickel	Yes	4	Loose Pin Information Loose Pin Used = 4613 Material = Brass Alloy Contact 30 = Standard 4 Finger Contact Material = Beryllium Copper Pin Diameter Range = .015"-.025" (0,381-0,635mm) Insulator Information High Temp Thermoplastic Packaging Packaged in Box or Tube Lifecycle Active Request Note * Contact Distributor for Price and Delivery Quote Sample Datasheet PDF	Mill-Max products labeled with the RoHS symbol are compliant with all three ROHS Directives. All of our products previously described as RoHS (2002/95/EC) and RoHS-2 (2011/65/EC) are also compliant with RoHS-3 (2015/863/EU).
446---41-013000	Not in Stock *	43: - 200 μ" Tin (matte finish) over 100 μ" Nickel Inner Contact Plating: 30 μ" Gold over 50 μ" Nickel	Yes	6	Loose Pin Information Loose Pin Used = 4613 Material = Brass Alloy Contact 30 = Standard 4 Finger Contact Material = Beryllium Copper Pin Diameter Range = .015"-.025" (0,381-0,635mm) Insulator Information High Temp Thermoplastic Packaging Packaged in Box or Tube Lifecycle Active Request Note * Contact Distributor for Price and Delivery Quote Sample Datasheet PDF	Mill-Max products labeled with the RoHS symbol are compliant with all three ROHS Directives. All of our products previously described as RoHS (2002/95/EC) and RoHS-2 (2011/65/EC) are also compliant with RoHS-3 (2015/863/EU).
446---41-013000	Not in Stock *	44: - 200 μ" Tin (matte finish) over 100 μ" Nickel Inner Contact Plating: 100 μ" Tin (matte finish) over 50 μ" Nickel	Yes	4	Loose Pin Information Loose Pin Used = 4613 Material = Brass Alloy Contact 30 = Standard 4 Finger Contact Material = Beryllium Copper Pin Diameter Range = .015"-.025" (0,381-0,635mm) Insulator Information High Temp Thermoplastic Packaging Packaged in Box or Tube Lifecycle Active Request Note * Contact Distributor for Price and Delivery Quote Sample Datasheet PDF	Mill-Max products labeled with the RoHS symbol are compliant with all three ROHS Directives. All of our products previously described as RoHS (2002/95/EC) and RoHS-2 (2011/65/EC) are also compliant with RoHS-3 (2015/863/EU).
446---41-013000	Not in Stock *	44: - 200 μ" Tin (matte finish) over 100 μ" Nickel Inner Contact Plating: 100 μ" Tin (matte finish) over 50 μ" Nickel	Yes	6	Loose Pin Information Loose Pin Used = 4613 Material = Brass Alloy Contact 30 = Standard 4 Finger Contact Material = Beryllium Copper Pin Diameter Range = .015"-.025" (0,381-0,635mm) Insulator Information High Temp Thermoplastic Packaging Packaged in Box or Tube Lifecycle Active Request Note * Contact Distributor for Price and Delivery Quote Sample Datasheet PDF	Mill-Max products labeled with the RoHS symbol are compliant with all three ROHS Directives. All of our products previously described as RoHS (2002/95/EC) and RoHS-2 (2011/65/EC) are also compliant with RoHS-3 (2015/863/EU).
446---41-013000	Not in Stock *	93: - 200 μ" Tin/Lead(93/7) over 100 μ" Nickel Inner Contact Plating: 30 μ" Gold over 50 μ" Nickel	No	4	Loose Pin Information Loose Pin Used = 4613 Material = Brass Alloy Contact 30 = Standard 4 Finger Contact Material = Beryllium Copper Pin Diameter Range = .015"-.025" (0,381-0,635mm) Insulator Information High Temp Thermoplastic Packaging Packaged in Box or Tube Lifecycle Active Request Note * Contact Distributor for Price and Delivery Quote Sample Datasheet PDF
446---41-013000	Not in Stock *	93: - 200 μ" Tin/Lead(93/7) over 100 μ" Nickel Inner Contact Plating: 30 μ" Gold over 50 μ" Nickel	No	6	Loose Pin Information Loose Pin Used = 4613 Material = Brass Alloy Contact 30 = Standard 4 Finger Contact Material = Beryllium Copper Pin Diameter Range = .015"-.025" (0,381-0,635mm) Insulator Information High Temp Thermoplastic Packaging Packaged in Box or Tube Lifecycle Active Request Note * Contact Distributor for Price and Delivery Quote Sample Datasheet PDF
446---41-013000	Not in Stock *	99: - 200 μ" Tin/Lead(93/7) over 100 μ" Nickel Inner Contact Plating: 100 μ" Tin/Lead(93/7) over 50 μ" Nickel	No	4	Loose Pin Information Loose Pin Used = 4613 Material = Brass Alloy Contact 30 = Standard 4 Finger Contact Material = Beryllium Copper Pin Diameter Range = .015"-.025" (0,381-0,635mm) Insulator Information High Temp Thermoplastic Packaging Packaged in Box or Tube Lifecycle Active Request Note * Contact Distributor for Price and Delivery Quote Sample Datasheet PDF
446---41-013000	Not in Stock *	99: - 200 μ" Tin/Lead(93/7) over 100 μ" Nickel Inner Contact Plating: 100 μ" Tin/Lead(93/7) over 50 μ" Nickel	No	6	Loose Pin Information Loose Pin Used = 4613 Material = Brass Alloy Contact 30 = Standard 4 Finger Contact Material = Beryllium Copper Pin Diameter Range = .015"-.025" (0,381-0,635mm) Insulator Information High Temp Thermoplastic Packaging Packaged in Box or Tube Lifecycle Active Request Note * Contact Distributor for Price and Delivery Quote Sample Datasheet PDF
