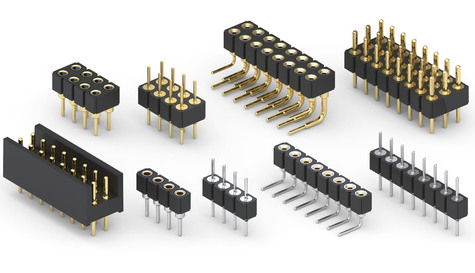

Precision Machined Pin Headers

Mill-Max machined pin headers offer an ideal solution to the board-to-board interconnect challenges that design engineers face every day.

We offer a variety of options to accommodate everything from space-saving, fine-pitch requirements, to larger, more robust applications in which products are subjected to harsh environments including significant shock and vibration. By mating different combinations of headers and sockets, a wide range of board-to-board spacing can be achieved. All sockets accept .008" - .043" (0,20 -1,09) diameter leads and are made using our unique 4-finger Berylium Copper contact clip, which provides a high reliability gas-tight seal.

Mill-Max connectors are available in the following configurations:

• Pluggable using a mating socket and header
• Permanent by soldering a through-hole header to both boards
• Fine pitch from 2mm down to 1mm pin-to-pin spacing
• Surface mount headers and sockets
• Right angle
• Multiple board stacking using Organic Fiber Plug® pass-through sockets
• Horizontal “Z-Bend” SMT
• Wire Termination: Soldercup, Turret, Slotted
• Solderless Press-fit

Choose an option below to see some of our standard offerings, or use the product finder to search all of our options.

Standard	SMT	Horizontal	Press-Fit	Shrouded
Standard Solder Tail .100" (2,54mm) Pin Spacing Contact rated at 4.5 Amps Single, Double or Triple Row Available	SMT Gull-Wing or Stub Tail Design .100" (2,54mm) Pin Spacing Contact rated at 4.5 Amps Single or Double Row Available	Used for Mating two boards side by side .100" (2,54mm) Pin Spacing Contact rated at 4.5 Amps Single or Double Row Available	Compliant and Standard Press-Fit Tail .100" (2,54mm) Pin Spacing Contact rated at 4.5 Amps Single or Double Row Available	Shrouded Header for added stability .100" (2,54mm) Pin Spacing Contact rated at 4.5 Amps Single or Double Row Available
More Info	More Info	More Info	More Info	More Info
Want to search more options? Try our product finder.
