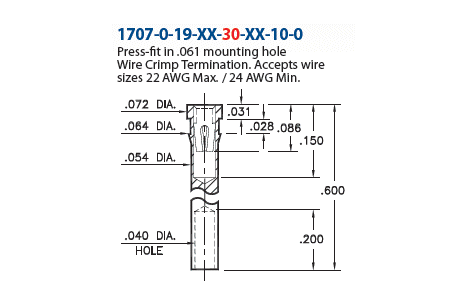

1707 Wire Termination Receptacle - Crimp Type
Overview
Description:
Wire Termination Receptacle - Crimp Type
Accepts .015"-.025" (0,381-0,635mm) diameter leads.
Wire Termination:
Crimp 22-24 AWG
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH)
Mounting Hole:
.061" (1,549mm)
Tail Type:
Crimp
Product Family:
Pin Receptacle
Mates With:
Recommended Tooling:
1707 Wire Termination Receptacle - Crimp Type
Overview
Description:
Wire Termination Receptacle - Crimp Type
Accepts .015"-.025" (0,381-0,635mm) diameter leads.
Wire Termination:
Crimp 22-24 AWG
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH)
Mounting Hole:
.061" (1,549mm)
Tail Type:
Crimp
Product Family:
Pin Receptacle
Mates With:
Recommended Tooling:
Products
Narrow Results by:
| Part No. | Priority | In Stock | In Stock Sort | Shell Plating | Contact Plating | ROHS | Contact Number | Shell Material | Packaging Options | Qty Per Reel | Lifecycle | Request Note | Request Quote/Sample | Datasheet | Image |
|---|
