Edge Mounted Pins for Board Interconnects

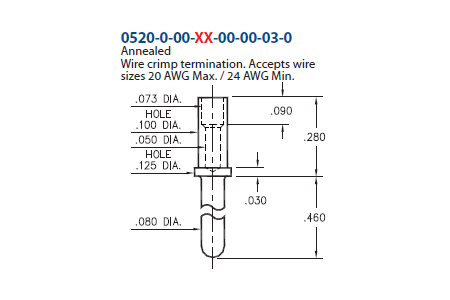

0520 Crimp Terminal Pin
Overview
Description:
Crimp Terminal Pin
Wire Termination:
Crimp 20-24 AWG
Mounting Feature:
Wire Mount
Tail Type:
Soldertail
Tail Diameter: .080" (2,032mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.084" (2,134mm)
Product Family:
Printed Circuit Board (PCB) Pin
Mates With:
Recommended Tooling:
0520 Crimp Terminal Pin
Overview
Description:
Crimp Terminal Pin
Wire Termination:
Crimp 20-24 AWG
Mounting Feature:
Wire Mount
Tail Type:
Soldertail
Tail Diameter: .080" (2,032mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.084" (2,134mm)
Product Family:
Printed Circuit Board (PCB) Pin
Mates With:
Recommended Tooling:
