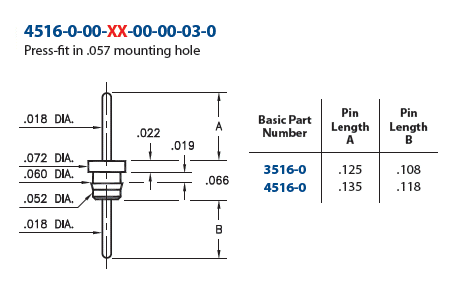

4516 Double Tail Header Pin

4516 Double Tail Header Pin

Overview

Description:

Double Tail Header Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:  .059" (1,499mm)
Tail Type: Soldertail
Tail Diameter: .018" (0,457mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .022" (0,559mm)

Product Family:

Printed Circuit Board (PCB) Pin

Mates With:

Find mating receptacles

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

4516 Double Tail Header Pin

Overview

Description:

Double Tail Header Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:  .059" (1,499mm)
Tail Type: Soldertail
Tail Diameter: .018" (0,457mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .022" (0,559mm)

Product Family:

Printed Circuit Board (PCB) Pin

Mates With:

Find mating receptacles

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C
