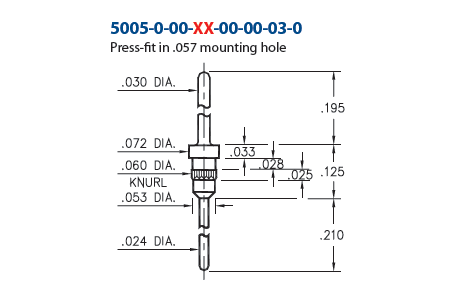

5005 Double Tail Header Pin

5005 Double Tail Header Pin

Overview

Description:

Double Tail Header Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:  .057" (1,448mm)
Tail Type: Soldertail
Tail Diameter: .024" (0,610mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .028" (0,711mm)

Product Family:

Printed Circuit Board (PCB) Pin

Mates With:

Find mating receptacles

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

5005 Double Tail Header Pin

Overview

Description:

Double Tail Header Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:  .057" (1,448mm)
Tail Type: Soldertail
Tail Diameter: .024" (0,610mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .028" (0,711mm)

Product Family:

Printed Circuit Board (PCB) Pin

Mates With:

Find mating receptacles

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C
