Edge Mounted Pins for Board Interconnects

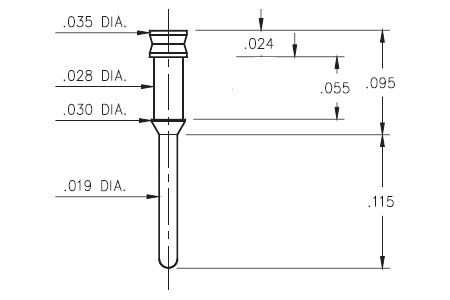

0737 Press-fit PCB Pin
Overview
Description:
Press-fit PCB Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.029" (0,737mm)
Tail Type:
Soldertail
Tail Diameter: .019" (0,483mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.023" (0,584mm)
0737 Press-fit PCB Pin
Overview
Description:
Press-fit PCB Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.029" (0,737mm)
Tail Type:
Soldertail
Tail Diameter: .019" (0,483mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.023" (0,584mm)
Products
Narrow Results by:
Part No. | Priority | In Stock | In Stock Sort | Shell Plating | Contact Plating | ROHS | Contact Number | Shell Material | Packaging Options | Qty Per Reel | Lifecycle | Request Note | Request Quote/Sample | Datasheet | Image |
---|
