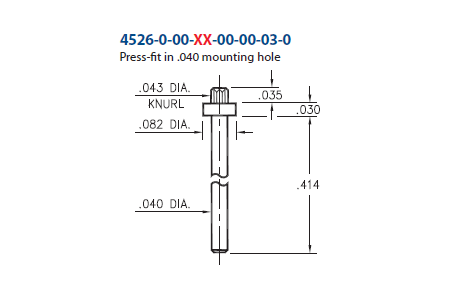

4526 Press-fit PCB Pin
Overview
Description:
Press-fit PCB Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.040" (1,016mm)
Tail Type:
Soldertail
Tail Diameter: .040" (1,016mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.044" (1,118mm)
4526 Press-fit PCB Pin
Overview
Description:
Press-fit PCB Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.040" (1,016mm)
Tail Type:
Soldertail
Tail Diameter: .040" (1,016mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.044" (1,118mm)
