Edge Mounted Pins for Board Interconnects

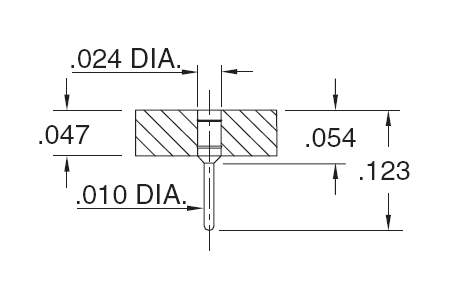

9929 Press-fit PCB Pin
Overview
Description:
Press-fit PCB Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.024" (0,610mm)
Tail Type:
Soldertail
Tail Diameter: .010" (0,254mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.014" (0,356mm)
9929 Press-fit PCB Pin
Overview
Description:
Press-fit PCB Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.024" (0,610mm)
Tail Type:
Soldertail
Tail Diameter: .010" (0,254mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.014" (0,356mm)
