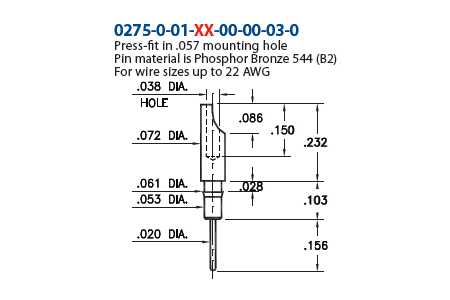

0275 Solder Cup Terminal Pin
Overview
Description:
Solder Cup Terminal Pin
Wire Termination:
Soldercup up to 22 AWG
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.057" (1,448mm)
Tail Type:
Soldertail
Tail Diameter: .020" (0,508mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.024" (0,610mm)
0275 Solder Cup Terminal Pin
Overview
Description:
Solder Cup Terminal Pin
Wire Termination:
Soldercup up to 22 AWG
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.057" (1,448mm)
Tail Type:
Soldertail
Tail Diameter: .020" (0,508mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.024" (0,610mm)
