Overview

Description:

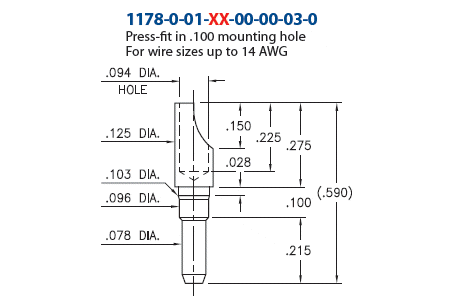

Solder Cup Terminal Pin
Wire Termination:
Soldercup up to 14 AWG
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:  .100" (2,540mm)
Tail Type: Soldertail
Tail Diameter: .078" (1,981mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .082" (2,083mm)

Product Family:

Printed Circuit Board (PCB) Pin


Mates With:

Find mating receptacles

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

Overview

Description:

Solder Cup Terminal Pin
Wire Termination:
Soldercup up to 14 AWG
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:  .100" (2,540mm)
Tail Type: Soldertail
Tail Diameter: .078" (1,981mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .082" (2,083mm)

Product Family:

Printed Circuit Board (PCB) Pin


Mates With:

Find mating receptacles

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C
