Edge Mounted Pins for Board Interconnects

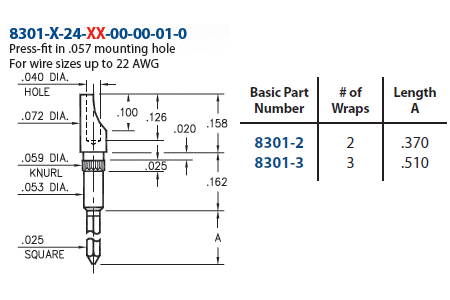

8301 Solder Cup Terminal Pin
Overview
Description:
Solder Cup Terminal Pin
Wire Termination:
Soldercup up to 22 AWG
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.057" (1,448mm)
Tail Type:
Wire-wrap
Tail Diameter: .025" (0,635mm)
8301 Solder Cup Terminal Pin
Overview
Description:
Solder Cup Terminal Pin
Wire Termination:
Soldercup up to 22 AWG
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.057" (1,448mm)
Tail Type:
Wire-wrap
Tail Diameter: .025" (0,635mm)
