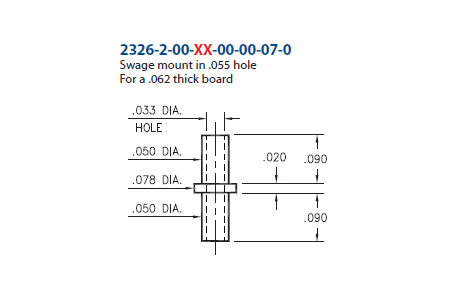

2326 Swage Terminal Pin

Overview

Description:

Swage Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole: .055" (1,397mm)
Tail Type: No Tail
Tail Diameter: 0" (0,0mm)

Product Family:

Printed Circuit Board (PCB) Pin

Recommended Tooling:

900-XX-XXX-00-416002

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

Description:

Swage Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole: .055" (1,397mm)
Tail Type: No Tail
Tail Diameter: 0" (0,0mm)

Product Family:

Printed Circuit Board (PCB) Pin

Recommended Tooling:

900-XX-XXX-00-416002

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

Stock:

RoHS:

Shell Plating:

Loading products

Part No.	Priority	In Stock	In Stock Sort	Shell Plating	Contact Plating	ROHS	Contact Number	Shell Material	Packaging Options	Qty Per Reel	Lifecycle	Request Note	Request Quote/Sample	Datasheet		Image
