Edge Mounted Pins for Board Interconnects

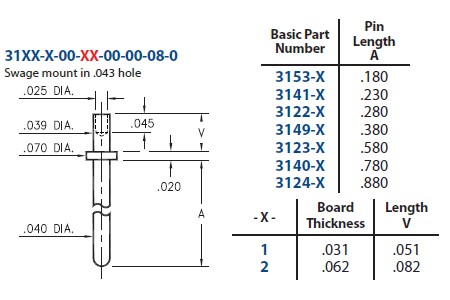

3123 Swage Terminal Pin
Overview
Description:
Swage Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole:
.043" (1,092mm)
Tail Type:
Soldertail
Tail Diameter: .040" (1,016mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.044" (1,118mm)
Product Family:
Printed Circuit Board (PCB) Pin
Mates With:
Recommended Tooling:
3123 Swage Terminal Pin
Overview
Description:
Swage Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole:
.043" (1,092mm)
Tail Type:
Soldertail
Tail Diameter: .040" (1,016mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.044" (1,118mm)
Product Family:
Printed Circuit Board (PCB) Pin
Mates With:
Recommended Tooling:
Products
Narrow Results by:
Loading products
| Part No. | Priority | In Stock | In Stock Sort | Shell Plating | Contact Plating | ROHS | Contact Number | Shell Material | Packaging Options | Qty Per Reel | Lifecycle | Request Note | Request Quote/Sample | Datasheet | Image |
|---|
Showing XX of XX Results
