Overview

Description:

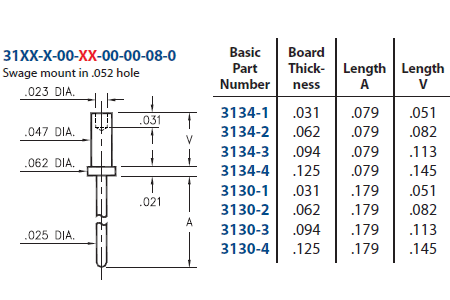

Swage Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole:  .052" (1,321mm)
Tail Type: Soldertail
Tail Diameter: .025" (0,635mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .029" (0,737mm)

Product Family:

Printed Circuit Board (PCB) Pin


Mates With:

Find mating receptacles

Recommended Tooling:

900-XX-XXX-00-413000

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

Overview

Description:

Swage Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole:  .052" (1,321mm)
Tail Type: Soldertail
Tail Diameter: .025" (0,635mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .029" (0,737mm)

Product Family:

Printed Circuit Board (PCB) Pin


Mates With:

Find mating receptacles

Recommended Tooling:

900-XX-XXX-00-413000

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

Products

Narrow Results by:

Loading products
Part No. Priority In Stock In Stock Sort Shell Plating Contact Plating ROHS Contact Number Shell Material Packaging Options Qty Per Reel Lifecycle Request Note Request Quote/Sample Datasheet Image
Showing XX of XX Results
