Edge Mounted Pins for Board Interconnects

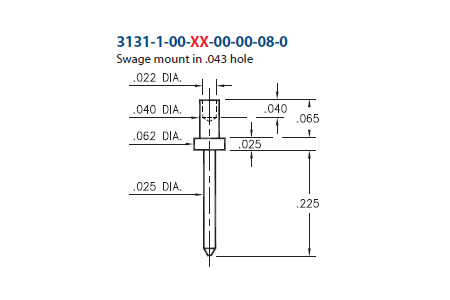

3131 Swage Terminal Pin
Overview
Description:
Swage Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole:
.043" (1,092mm)
Tail Type:
Soldertail
Tail Diameter: .025" (0,635mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.029" (0,737mm)
Product Family:
Printed Circuit Board (PCB) Pin
Mates With:
Recommended Tooling:
3131 Swage Terminal Pin
Overview
Description:
Swage Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole:
.043" (1,092mm)
Tail Type:
Soldertail
Tail Diameter: .025" (0,635mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.029" (0,737mm)
Product Family:
Printed Circuit Board (PCB) Pin
Mates With:
Recommended Tooling:
