Edge Mounted Pins for Board Interconnects

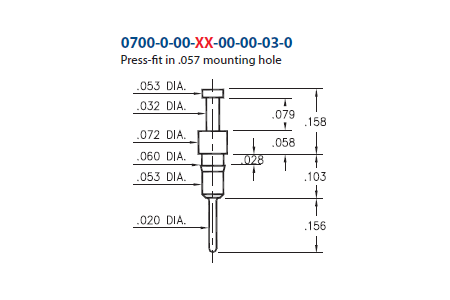

0700 Turret Terminal Pin
Overview
Description:
Turret Terminal Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.057" (1,448mm)
Tail Type:
Soldertail
Tail Diameter: .020" (0,508mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.024" (0,610mm)
0700 Turret Terminal Pin
Overview
Description:
Turret Terminal Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.057" (1,448mm)
Tail Type:
Soldertail
Tail Diameter: .020" (0,508mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:
.024" (0,610mm)
Products
Narrow Results by:
Loading products
| Part No. | Priority | In Stock | In Stock Sort | Shell Plating | Contact Plating | ROHS | Contact Number | Shell Material | Packaging Options | Qty Per Reel | Lifecycle | Request Note | Request Quote/Sample | Datasheet | Image |
|---|
Showing XX of XX Results
