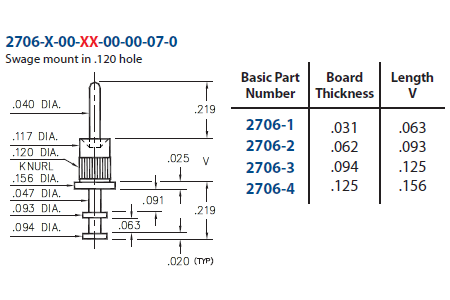

2706 Turret Terminal Pin

2706 Turret Terminal Pin

Overview

Description:

Turret Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole:  .120" (3,048mm)
Tail Type: Soldertail
Tail Diameter: .040" (1,016mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .044" (1,118mm)

Product Family:

Printed Circuit Board (PCB) Pin

Mates With:

Find mating receptacles

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

2706 Turret Terminal Pin

Overview

Description:

Turret Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole:  .120" (3,048mm)
Tail Type: Soldertail
Tail Diameter: .040" (1,016mm)
Alternate Mounting:
Through-Hole Soldertail Mount
Alternate Mounting Hole:  .044" (1,118mm)

Product Family:

Printed Circuit Board (PCB) Pin

Mates With:

Find mating receptacles

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

Products

Narrow Results by:

Loading products
Part No. Priority In Stock In Stock Sort Shell Plating Contact Plating ROHS Contact Number Shell Material Packaging Options Qty Per Reel Lifecycle Request Note Request Quote/Sample Datasheet Image
Showing XX of XX Results

Tags

knurl press-fitnpthpress-fitterminal pinturret headturret lugswage mountcircuit board pinpcb pin
