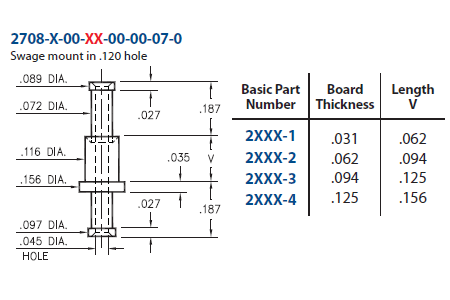

2708 Turret Terminal Pin

Overview

Description:

Turret Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole: .120" (3,048mm)
Tail Type: Turret
Tail Diameter: .097" (2,464mm)

Product Family:

Printed Circuit Board (PCB) Pin

Maximum Current:

Maximum Derated Current:
Contact Resistance:
Operating Temperature Range:
- 55/+125° C

Description:

Turret Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole: .120" (3,048mm)
Tail Type: Turret
Tail Diameter: .097" (2,464mm)

Product Family:

Printed Circuit Board (PCB) Pin

Maximum Current:

Maximum Derated Current:
Contact Resistance:
Operating Temperature Range:
- 55/+125° C

Stock:

RoHS:

Shell Plating:
