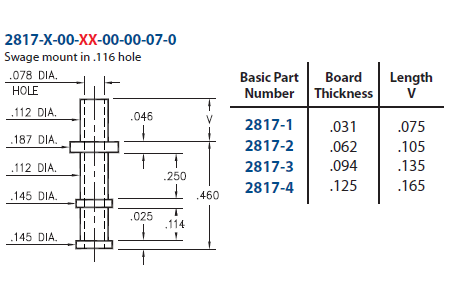

2817 Turret Terminal Pin

Overview

Description:

Turret Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole: .116" (2,946mm)
Tail Type: Turret
Tail Diameter: .145" (3,683mm)

Product Family:

Printed Circuit Board (PCB) Pin

Recommended Tooling:

900-XX-XXX-00-436000

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

Description:

Turret Terminal Pin
Mounting Feature:
Swage Mount
Mounting Hole: .116" (2,946mm)
Tail Type: Turret
Tail Diameter: .145" (3,683mm)

Product Family:

Printed Circuit Board (PCB) Pin

Recommended Tooling:

900-XX-XXX-00-436000

Current Rating:
Application Specific
Operating Temperature Range:
- 55/+125° C

Stock:

RoHS:

Shell Plating:

Loading products

Part No.	Priority	In Stock	In Stock Sort	Shell Plating	Contact Plating	ROHS	Contact Number	Shell Material	Packaging Options	Qty Per Reel	Lifecycle	Request Note	Request Quote/Sample	Datasheet		Image
