Edge Mounted Pins for Board Interconnects
1021 Wire Wrap Terminal Pin
Overview
Description:
Wire Wrap Terminal Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.069" (1,753mm)
Tail Type:
Wire-wrap
Tail Diameter: .025" (0,635mm)

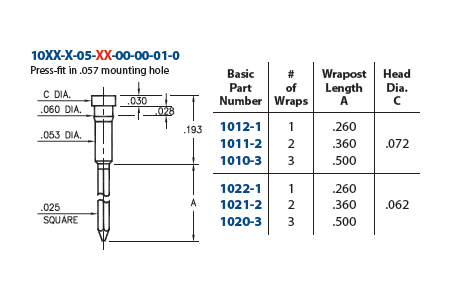

1021 Wire Wrap Terminal Pin
Overview
Description:
Wire Wrap Terminal Pin
Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator
Mounting Hole:
.069" (1,753mm)
Tail Type:
Wire-wrap
Tail Diameter: .025" (0,635mm)
Products
Narrow Results by:
Loading products
| Part No. | Priority | In Stock | In Stock Sort | Shell Plating | Contact Plating | ROHS | Contact Number | Shell Material | Packaging Options | Qty Per Reel | Lifecycle | Request Note | Request Quote/Sample | Datasheet | Image |
|---|
